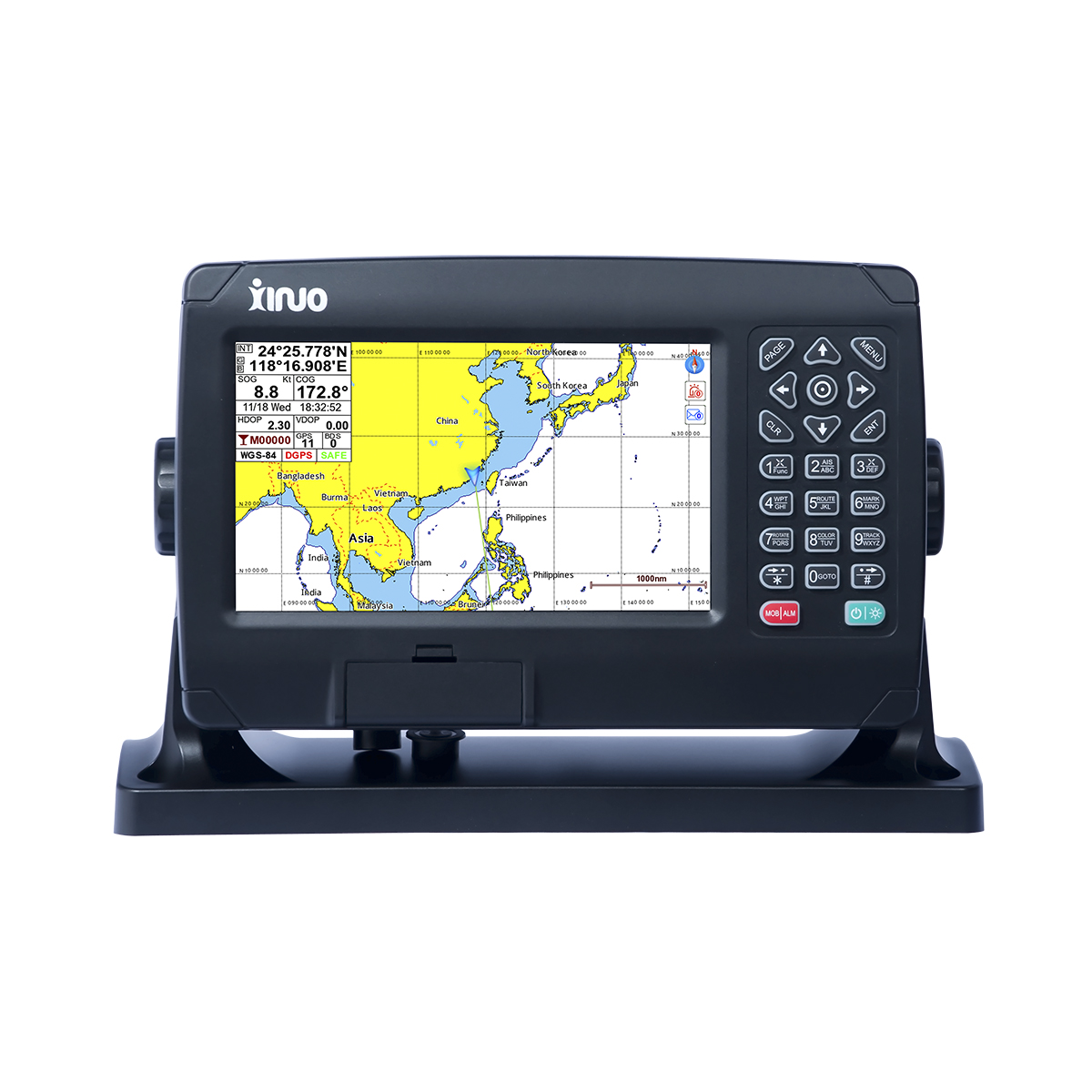

XF-607 7 inch GNSS Chart Plotter

Model：XF-607

· Support BDS, GPS dual-mode high-precision positioning.
· Support classic& utility dual operating system.
· Support multi-language display.
· Support to update software online.

GNSS chart plotter supports BDS, GPS dual-mode high-precision positioning, combined with self-developed SOG&COG filtering algorithm, it has advantages of stable SOG&COG, high receiving sensitivity, accurate position.
◆ Passed the EU CE certification.
◆ 7 inch color LCD with 800 x 480 resolution, high brightness, wide angle of view.
◆ Classic& Utility dual operating system, you can switch freely.
◆ Built-in BDS, GPS dual-mode high-precision positioning module, the position information is stable and reliable.
◆ Support multi-language display, such as Chinese, English, Korean, etc.
◆ Many display pages can be chose and switched freely.
◆ Connect to mobile network to upgrade software online.
◆ Install in intelligent voice to broadcast operation content, alarm content, etc.

Display Unit		XF-607
Display Type		Color TFT LCD
Size		7 inch
Resolution		800 × 480 pixels
Brightness		500cd/㎡
Language		English, Simplified Chinese, Traditional Chinese, Vietnamese, Bahasa Malaysia, Turkish, Thai, Greek, Indonesian, Japanese, Korean, Spanish, Burmese, Persian
Display Modes		Standard Chart View, Pure Chart View, Simple Chart View, AIS Data, Sailing Data, GNSS, 3D Navigation, Compass
Memory Capacity		50,000 waypoints, 50,000 markers, 500 routes, one route can indicate 200 waypoints , 1000 tracks, 1,600,000 track points
Interface		2 Ports NMEA0183 Output , 2 Ports NMEA0183 Input (Baud rate can be set indenpently)
WIFI		802.11 b/g/n
Power Supply		DC10V~36V
Power Consumption		8W or less (24V DC)
Enviromental
Working Temperature		-15℃~+55℃
Storage Temperature		-20℃~+60℃
Waterproof		IP65
GNSS
GNSS Receiver		72 channels
Receive Frequency		GPS L1: 1575.42MHz；BDS B1: 1561.098MHz
Accuracy	GPS&BDS	2.5m(CEP50% open sky)
	GPS	5m(CEP50% open sky)
	BDS	5m(CEP50% open sky)
Speed Accuracy		0.1m/s(50%@10m/s)
Time to First Fix		Cold Start <30s , Hot Start <1s
Standards		IMO Resolution A.694(17) , IMO MSC 112(73), IEC 61108-1, IEC 61162-1, IEC 60945
