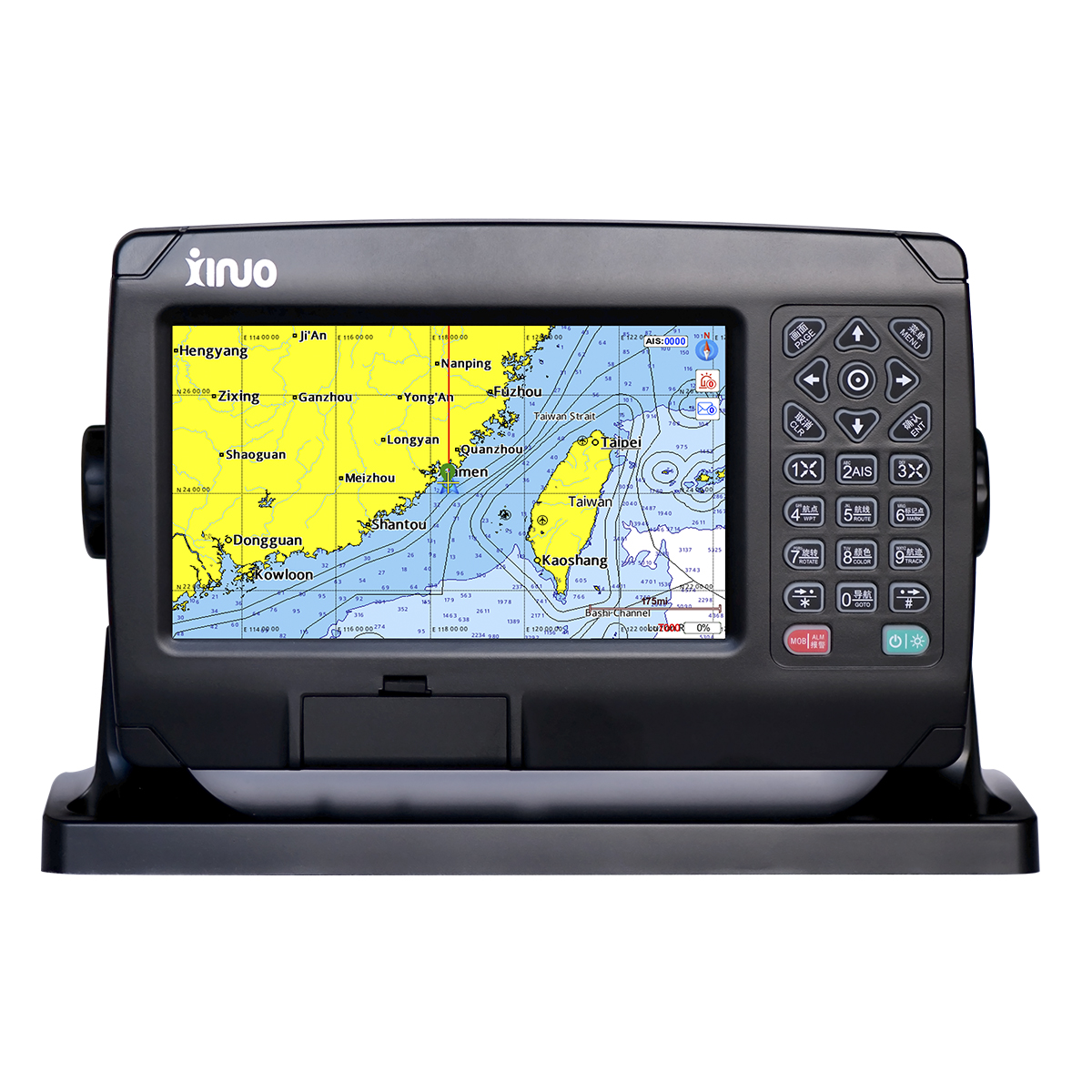

GN150 series multi-system shipborne radionavigation receivers are the first products in this category to be certified by CCS in China, it supports multi-mode high precision positioning, multi-language display to satisfy the requirements of different user groups.
• Passed the EU CE certification, China Classification Society CCS type approval.
• 7 inch color LCD with 800 x 480 resolution, high brightness, wide angle of view.
• Super cortex-A17 processor with high-capacity storage, born to be strong, never settle.
• Built-in high-precision BDS/GPS/GLONASS multi-mode positioning module, support RTCM2.3 DGNSS input.
• Self-developed SOG&COG filtering algorithm which can intelligently match ship types to achieve stable SOG&COG output.
• Connect to mobile network to upgrade software online.
• Install in intelligent voice to broadcast operation content, alarm content, etc.
• Classic& Utility dual operating system, you can switch freely.
• Power failure will immediately alarm to ensure the device work well.
· Passed CE certification, CCS type approval.
· Support multi-mode high precision positioning.
· Support classic& utility dual operating system.
· Support to update software online.
| Display Unit | GN150(7") | |
| Display Type | Color TFT LCD | |
| Size | 7 inch | |
| Resolution | 800*480 | |
| Brightness | 500cd/㎡ | |
|
Language |
English, Simplified Chinese, Traditional Chinese, Vietnamese, Bahasa Malaysia, Turkish, Thai, Greek, Indonesian, Japanese, Korean, Spanish, Burmese, Persian | |
| Display Modes | Standard Chart View, Pure Chart View, Simple Chart View, AIS Data, Sailing Data, GNSS, 3D Navigation, Compass | |
| Memory Capacity | 50,000 waypoints, 50,000 markers, 500 routes, one route can indicate 200 waypoints , 1000 tracks, 1600000 track points | |
| Interface | 2 Ports NMEA0183 Output , 2 Ports NMEA0183 Input (Baud rate can be set indenpently) | |
| WIFI | 802.11 b/g/n | |
| Power Supply | DC10V~36V | |
| Power Consumption | 5.5W or less (24V DC) | |
| Enviromental | ||
| Working Temperature | -15℃~+55℃ | |
| Storage Temperature | -20℃~+60℃ | |
| Waterproof | IP65 | |
| GNSS | ||
| GNSS Receiver | 72 channels | |
| Receive Frequency | GPS L1: 1575.42MHz；BDS B1: 1561.098MHz | |
| Accuracy | GPS&BDS | 2.5m（CEP50% open sky） |
| GPS | 5m（CEP50% open sky） | |
| BDS | 5m（CEP50% open sky） | |
| DGNSS | 1m（CEP50% open sky） | |
| Speed Accuracy | 0.1m/s (50%@10m/s) | |
| Time to First Fix | Cold Start <30s , Hot Start <1s | |
|
Standards |
IMO Resolution A.694(17), Resolution MSC 112(73) , IMO MSC Resolution 379(93), IMO MSC Resolution 401(95), IMO MSC Resolution 432(98) , IEC 61108-1, IEC 62288, IEC60945, IEC 61162-1 |
|
