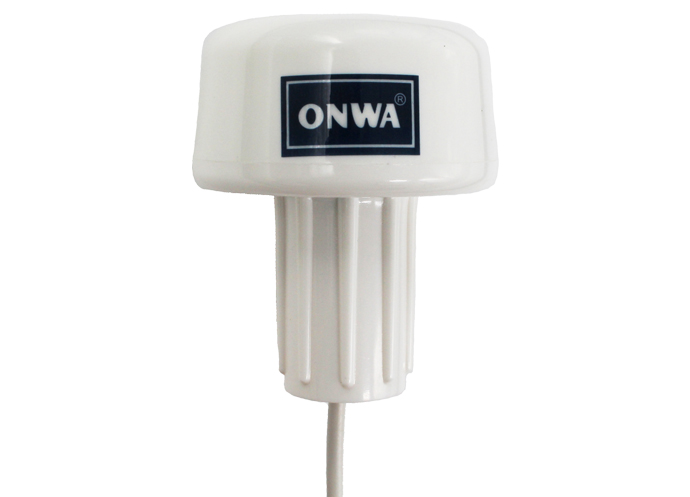

Onwa KA-GC9A Heading Sensor Electronics Compass GPS Receiver

• Low-cost solution for Heading Data
• Enhanced Performance
• User-Programmable
• Customizable GPS Output Sentences and Baudrate
• Better Stability of Heading output
• Real-time response Rate
• NMEA0183 Interface
• High-grade waterproof housing
• Longevity of usage in Marine Environment

INTERFACE (NMEA0183 VER 2.0)

Baudrate

4800

Output Sentences

GPRMC, GPGSA, GPGLL, GPZDA, GPVTG, GPHDT(5Hz)
NOTE: all output sentences are in intervals of 1 Hz unless specified

Electrical

RS422, 18KV ESD

Power Supply

5V-32V, Over-voltage and reverse polarity protected
Power consumption: 450mW

User-Interface

Uses 9-Axis E-compass Manager

IMU(Inertial Measurement Unit)

9-Axis(Features a GPS/Glonass receiver coupled with a 9-axis AHRS unit providing 3D orientation
by integrating gyroscopes and data fusing with accelerometers and magnetometers)

Equipment List

KA-GC9A with 10m cable 1set
