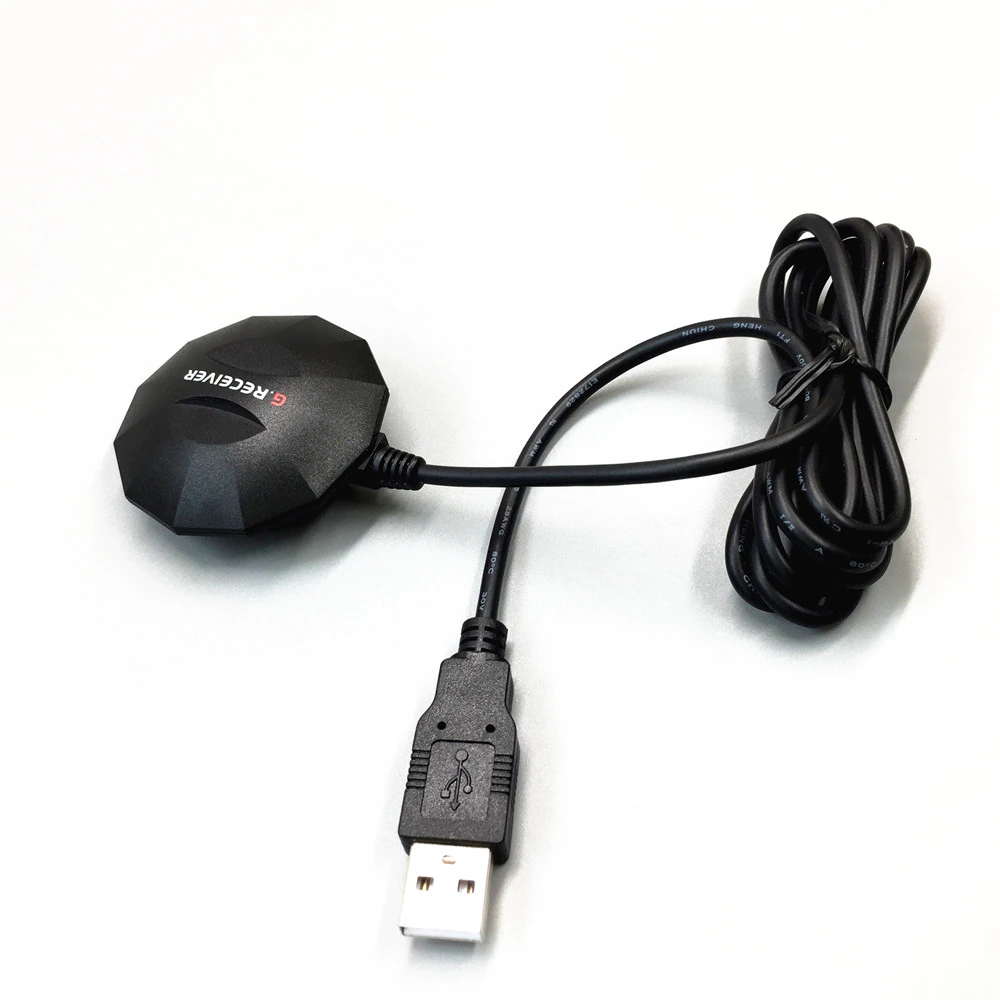

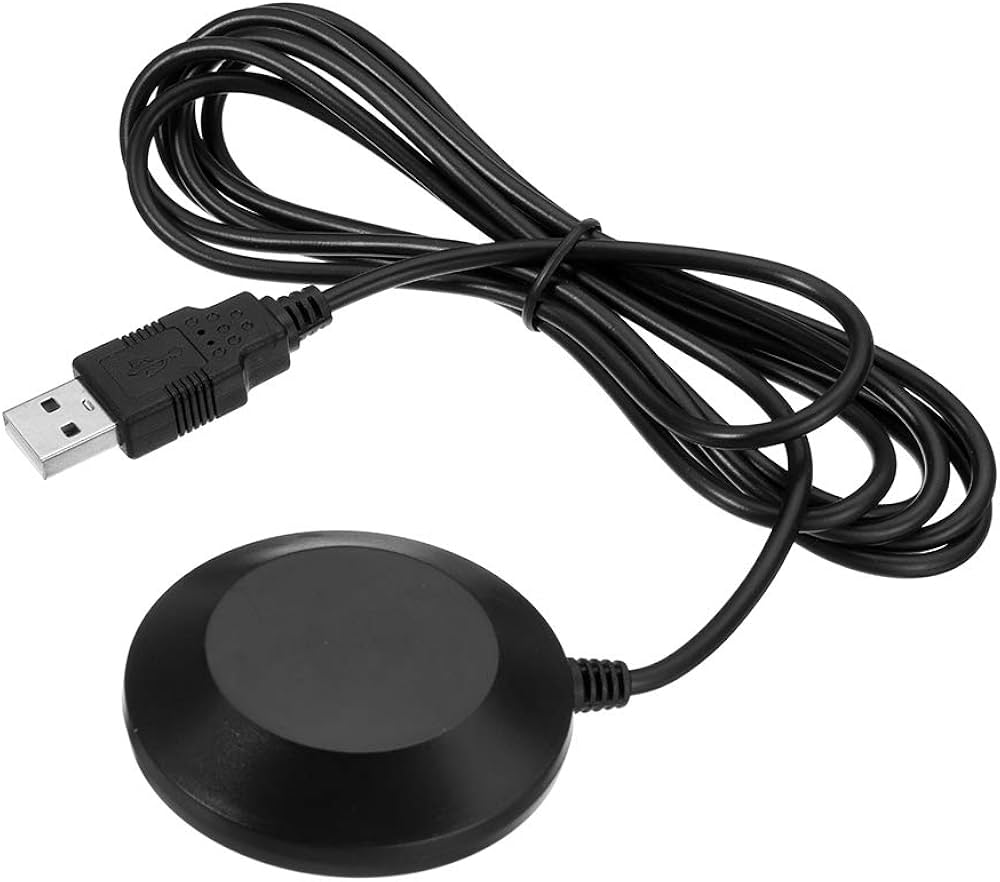

USB GNSS GPS GLONASS Receiver GMOUSE Industrial Application
Receiver Type |
72-channel 8030 engine GPS & QZSS:L1 C/A,1575.42MHz, GLONASS L1OF, 1598.0625~1605.375MHz GALILEO/BEIDOU B1 1561.098 MHz SBAS: WAAS, EGNOS, MSAS |
Horizontal |
2.5m (Autonomous) |
Position |
2.0m (WAAS) |
Accuracy |
(including SBAS & QZSS; CEP, 50% 24hr static, -130dBm, >6 SVs) |
Velocity |
0.05 m/s (speed) |
Accuracy |
<0.3(heading) (50%@30m/s) |
Time Pulse |
30ns (RMS) |
Signal Accuracy |
<60ns (99%) |
Time Pulse Frequency |
0.25 Hz ~ 10 MHz |
Time To First Fix Hot start Cold start |
Autonomous 1.5 sec 26 sec (50% -130dBm) |
Sensitivity (Autonomous) |
-148dBm (acquisition) -167dBm (tracking) |
Navigation. Update Rate |
Max. 10Hz, GPS & GLONASS or GPS & Beidou Max. 18Hz, GPS only Default 1Hz |
Max. Altitude |
50,000 m |
Max. Velocity |
<1,852 km/hr |
Protocol Support |
NMEA 0183 v2.3 and V4.x UART: 9600 bps N,8,1; GGA, GLL, GSA, GSV, RMC, VTG, TXT |
SBAS Support |
WAAS, EGNOS, MSAS |
