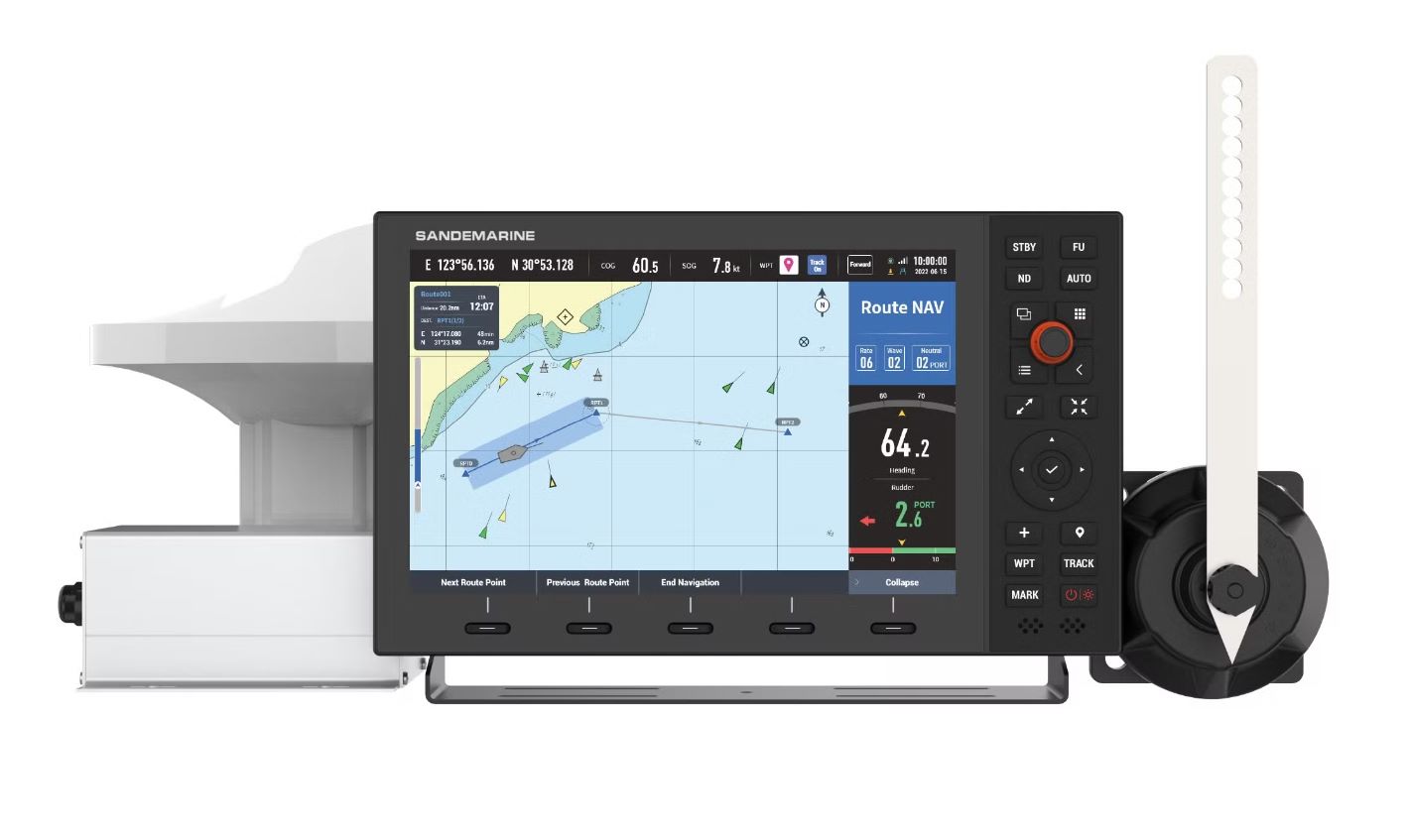

AP300 Autopilot can compensate for wind direction and tide by setting the parameters. Simply select the place you want to go on the screen, and the AP300 will take you to the destination in the shortest distance and time.
Route Navigation, Waypoint Navigation, Cursor Navigation,
Save fuel by straight distance to desti­nation.

AIS Tracking Navigation
Select the AIS target , and navigate in a line even the AIS is moving.

Quickly Switching Of AIS Lists
The AIS target can be added to the fleet list or buoy list, the screen can be quickly switched between different AIS lists.

Data cloud storage (Optional)
The data is automatically backed up to the cloud, and the user does not need to worry about data loss when replacing the device.

10.1 Inch Screen
10.1 inch color screen, 1280x800 resolution,high brightness, wide viewing angle.
AIS Data Input
Users can input AIS data to AP300.

Multiple Display
Quickly switching between chart, compass and GPS plotter mode.

Quickly Switching Of Steering Mode
Qucikly switching between STBY, AUTO, FU, No-drift (ND) and NAV modes.

Display Unit
AP300
Screen
Displayable area
10,1 inch
2178135.6mm
Brightness
Pixel
400 ints (Max)
1280+800
Environment
Temperature
-15C -+55C
Waterproof
IP65
power
Power supply
9-36V DC
Installation
Installation
Desktop installation, Hanging installation, Embedded installation
Interface
NEMA 0183
7 pin interface: AIS
USB
Navigation data input, 5 pin interface: GPS+compass data input
Chart input, data input, software upgrade
Function
Functional module
Display mode
Streering mode
Navigation mode
Driven system
Autopilot + Chart + AIS + GPS + Compass + 4G LTE (Optional)
Chart, Compass, GPS Plotter
STBY, AUTO, FU, No-drift (ND), NAV
AIS NAV, Route NAV, Waypoint NAV, Cursor NAV, Position NAV
Hydraulic-driven, chain-driven, solenoid valve
