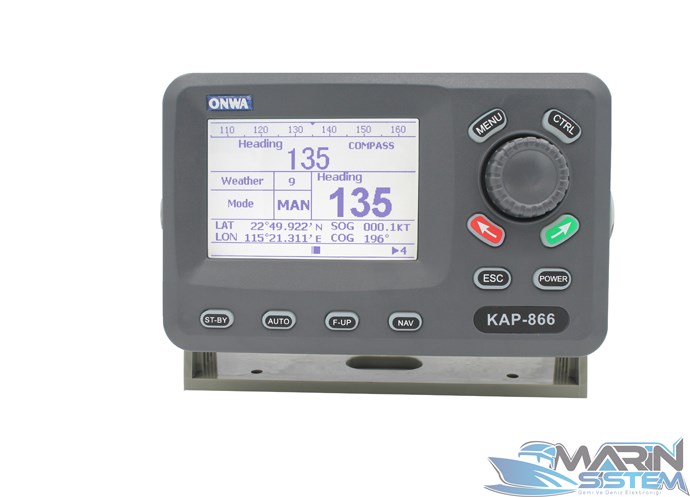

Onwa KAP-866 Marin Oto Pilot

• Comes with high accuracy 9-axis electronic heading and GPS sensor KA-GC9A as standard

• Applies the most advance PID controller (proportional–integral–derivative controller)
• No more “Rudder” and “Counter Rudder” adjustment is needed
• Automatic calculation against Wind and Current on sea (Auto Trim)
• Suitable for most kind and size of vessels
• Real time GPS information display (Lon/Lat, SOG and COG)
• Steer your boat in almost a straight line in any weather condition.

General

HEADING REFERENCE:

Fluxgate, Magnetic Compass, NMEA

HEADING SENSOR:

KA-GC9A (Standard), KFG-25 and KCS-20 (optional)

HEADING RESOLUTION:

1°

COURSE DETECTION:

0.1°

Output/ Input (IEC61162)

INPUT

Dual NMEA0183 Inputs
Support: APA, APB, BOD & XTE, HDG, HDT, HGM, RMC
Baud Rate: 4800 X1, auto baudrate X1 (scan among 4800, 9600, 19200 and 38400)

OUTPUT

One NMEA0183 output
Support: HDG, HGT, HGM, (selectable from menu)
Baud Rate: 4800, n, 8, 1

Environmental Conditions

Ambient Temperature

 -15°C~70°C

Waterproofing

Display Unit: IPX5
Heading and GPS Sensor: IPX67 for KA-GC9A
Fluxgate Sensor Unit: IPX5 for KFG-25
Rudder Feedback: IPX7

Display

Sunlight Viewable contrast LCD
LCD size: 95(W) x 63(H)mm, 240X160 dots

Electrical Parameters

Operating Voltage:

10 to 30VDC

Drive Output:

10 Amps max

Power Consumption:

Standby mode 0.4 Amps, Auto mode, 1.0 Amps Peak for control unit only.
