Quickly Switching Of Steering Mode
Qucikly switching between STBY, AUTO, FU, No-drift (ND) and NAV  modes.

Waypoint Navigation
Save fuel by straight distance to destination.Support connecting Chart and using external data for navigation.

Real Time Monitoring of Unit
The system can monitor the real-time status of each component in the system, ensuring the good and safe operation of the system.

Support data input and output
The device supports input and output of compass data and GNSS data. Simultaneously providing a data togging interface for convenient user testing

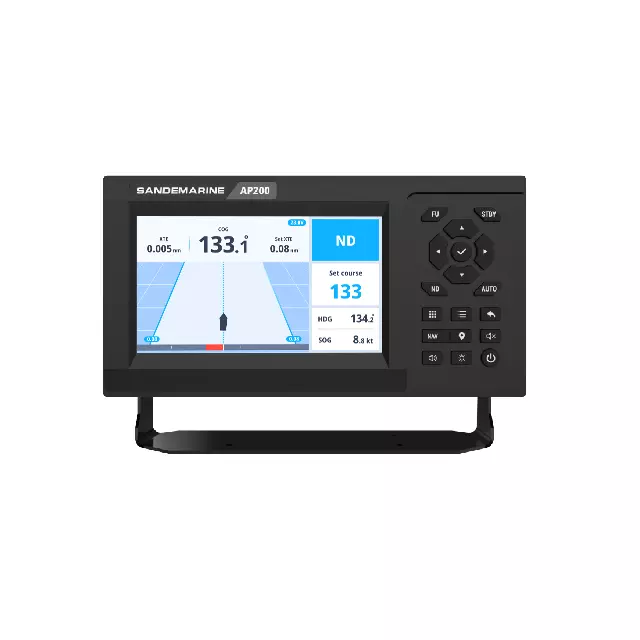

Display Unit
AP200
Screen
7 inch
Displayable area
153.8x85.6mm
Brightness
400 ints (Max)
Pixel
800x480
Environment
Temperature
-15C -+55C
Waterproof
IP65
power
Power supply
9-36V DC
Installation
Installation
Desktop installation, Hanging installation, Embedded installation
Interface
NMEA 0183
7 pin interface: AIS Data/navigation data/GNSS data/compass data input; GNSS data/compass data output
6 pin interface: GNSS data/compass data input
Function
Functional module
Autopilot
GNSS
Compass
4G SIM LTE (Optional)
Streering mode
STBY, AUTO, FU, No-drift (ND), NAV
Waypoint NAV
Navigation mode
Driven system

Hydraulic-driven speed boat, chain-driven speedboat
