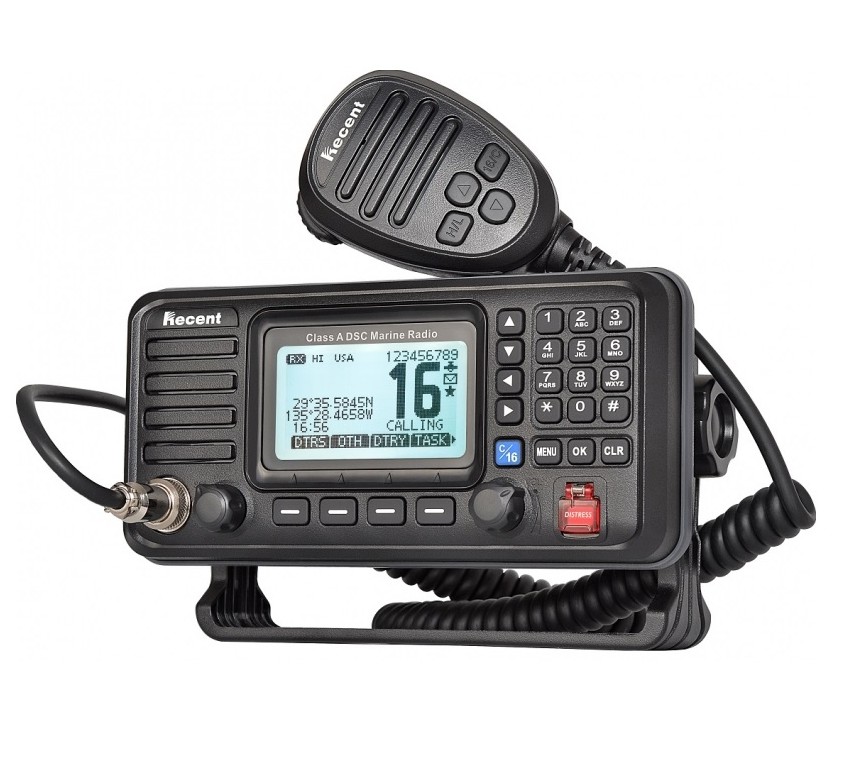

Recent RS-510MG 25W VHF Marine Transceiver Class A DSC Marine Radio Applied to Ships and Boats
Features:
- Small Size for Easy Installation
- NMEA Formats (In): RMC, GGA, GNS, GLL, VTG
- NMEA Formats (Out): DSC, DSE, RMC, GSA, GSV
- Dual Receiver, Independent DSC Dedicated Receiver
- IPX7 Waterproof Construction (1m Depth of Water for 30 Minutes)
- Speaker Vibration Draining Function
- Medical Transport Call and Ship and Aircraft
- Weather Channel Alarm
- Dual-/Tri-frequency Monitoring Functions
- Scan: Normal Scan and Priority Scan
- DSC Call Reception and Transmission Records Can be Queried
- Standard NMEA Interface (RS-422 Protocol)
- Full Dot Matrix Display
- Channel Number Display Digits Selectable: 3 Digits (01B)/ 4 Digits (2001)
- Simple Combination of Arrow Keys and Programmable Soft Keys for Smooth Operation
- Support Latest Marine Channel Standards and DSC Protocol Standards
- DSC Distress Calls in 11 Categories, All DSC Calls in 3 Security Categories
General Specifications:
- Frequency: TX: 156.000-162.000MHz; RX: 156.000-163.425MHz
- RF Power: 25W/1W
- Channel Group: USA, INT, CAN
- Modulation Mode: 16K0G3E (FM), 16K0G2B (DSC)
- Frequency Stability: ±10ppm
- Power Supply: DC13.8V (±15%)
- Channel Spacing: 25kHz
- Operating Temperature: -20â to +60â
- Antenna Impedance: 50Ω
- Output Impedance (Audio): 4Ω
- Dimensions (WxHxD): 208x98x115mm
Package Included:
- 1 x Transceiver
- 1 x Handheld microphone
- 1 x Mounting bracket
