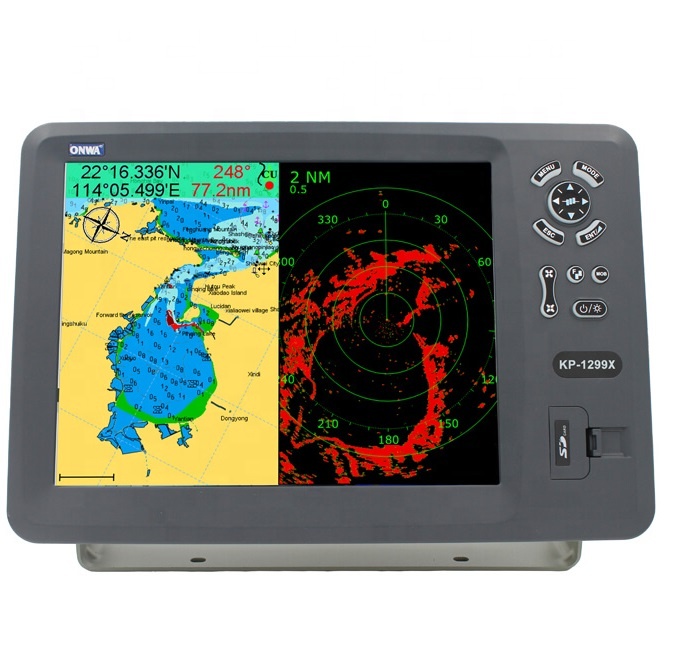

Onwa KP-1299X 12.1-inch GPS Chart Plotter Fish Finder Radar

Yeni Ürün

Onwa KP-1299X 12.1-inch GPS Chart Plotter Fish Finder Radar

Piyasa Fiyatı :

Site Fiyatı : Sorunuz

Kredi Kartı ile Tek Çekim : Sorunuz TL

Havale ile İndirimli : Sorunuz TL

TIKLA WHATSAPP İLE SİPARİŞ VER

05374116060

7x24 Whatsapp Üzerinden de Sipariş Verebilirsiniz.

Sepete ekle

Hemen Satın Al

Yorumları oku (0)

( Karşılaştır )

Açıklama
Ödeme Bilgileri
Video
Ürün Yorumları
SSS

KP-1299X 12.1-inch GPS Chart Plotter with Fish finder with built-in Class B+ AIS Transponder and Radar Function

12,1 inç Yüksek çözünürlüklü LCD, 800×600 piksel

BNC konnektörlü 10m GPS Anteni ile birlikte gelir

C-Map Max ve Navionics+ Uyumlu

Radar İşlevi: Radar ekranı, Radar+Plotter Bölünmüş Ekran ve Radar yerleşimi

Aşağıdaki Radar Anteni ile çalışabilir: KRA-1006(4KW Radom Anteni) veya KRA-4001(6KW Açık Dizi Anteni)(Radar Fonksiyonu için Radar Anteni Gerekir)

Dahili Sınıf B+ AIS Transponder (VHF Antenine ihtiyaç duyar)

Dahili Balık Bulucu

Dijital Balık Bulucu Teknolojisi

600W/1kW Çift Frekanslı (50 ve 200 KHz) Dönüştürücü Seçimi (Opsiyonel Aksesuar)

IP66'ya Korumalı Giriş

PLOTTER SPECIFICATIONS
WAYPOINTS/ICONS	12,000 user waypoints with name, symbol, 3 system waypoints: MOB,Start,cursor 10 proximity waypoints
ROUTES	30 routes waypoint up to 170 points each, plus MOB and Track Navigation or Goto Track modes
TRACKS	1 current track(8,000 points in One Current Track); 10 saved tracks (up to 8000 track points each)let you retrace your path in both directions
ALARMS	XTE, Anchor drag, arrival, speed, voltage, proximity waypoint and time,AIS alarm.
DRAWING	1000 Drawing Marks; 2000 Drawing Lines (40 points each); 1000 Drawing Place Name; 8 colors for Drawing
PALLETE	Normal Daylight exposed to sunlight Night in dark environment NOAA paperchart colors
TIDES	Tide data
PROJECTION	Mercator projection
POSITION FORMAT	Lat/Lon
BASEMAP	Built-in Onwa K-Chart
EXTERNAL MAP	SD Cards slot for C-Map MAX and Navionics+
USER DATA STORAGE	Internal backup of user settings, or external SD-card
PLOT INTERVAL	1s to 99h or 0.01 nm to 9.99nm
PLOTTING SCALES	0.01nm to 1,000nm
AIS	700 targets display
AIS TARGET TRACKING	1000 Automatically saved tracks (100 points each) 10 Manually saved tracks (300 points each)
NMEA SENTENCE	Input (external port) auto baudrate 4800 bps/ 9600 bps/ 19200 bps/ 38400bps GGA, GLL, GSA, GSV, RMC, HDG, HDM, HDT VTG, ZDA, MTW, VWR, VWT, MWD, VPW, VHW TLL, TTM, VDO, VDM, GNS, MTA RMA, DBT, DPT, MWV, BWC, XTE, ZDL, WPL, AAM, APB, BOD, RMB, DSC, MDA, RPM, XDR OUTPUT Baudrate : Selectable 4800, 9600, 19200, 38400 GGA, GLL, RMC, GSA, GSV, AAM, APA, APB, BOD, BWC BWR, DBT, DPT, HDT, MTW, RMB, TLL, VTG, WPL, XTE ZDA, ZTG, ZDL, MWD, VPW, VWR, VWT Outputs for autopilot: APA, APB, BOD, XTE
PERSPECTIVE VIEW	On/off
CELESTIAL	Sunrise/Sunset Moonrise/Moonset
RADAR FUNCTION
COMPATIBLE ANTENNA	KRA-1006: RADOME ANTENNA 4KW KRA-4001: OPEN-ARRAY ANTENNA 6KW
GPS RECEIVER CHARACTERISTICS
RECEIVER	50 parallel channel GPS receiver continuously Tracks and uses up to 50 satellites to compute and update your position
ACQUISITION TIMES	Cold start: 27 seconds average Warm start: 27 seconds average Hot start: 1 second average
UPDATE RATE	Can be selected:1/sec or 10/sec
ACCURACY POSITION	2.5 meters(95%) without S/A
VELOCITY	0.1 Meter/sec without S/A
SBAS	supported
SUPPORTS MULTI-POSITIONING SATELLITE SYSTEM	GPS and Beidou
TIME	±100ns synchronized to GPS time
DYNAMICS	Altitude: 50,000m Max Velocity: 500 m/s Acceleration: 4g Max
DATUM	WGS 84 & Others
INTERFACES	NMEA 0183 input and output,RS232 output
ANTENNA	KA-07
AIS CHARACTERISTICS
FREQUENCY RATE	156.025 MHz~162.025 MHz
ACCESS SCHEME	SOTDMA
CHANNEL BANDWIDTH	25 KHz
MODULATION	GMSK
DATA RATE	9,600 bps
NUMBER OF AIS TRANSMITTER	1
NUMBER OF AIS RECEIVER	2
AIS CHANNEL 1	CH 87B (161.975 MHz)
AIS CHANNEL 2	CH 88B (162.025 MHz)
TX POWER OUTPUT	> 5 Watt (37 dBm ± 1.5 dB)
RX SENSITIVITY	<-123dBm @ 20% PER
RX MESSAGE FORMAT	AIS Class A and B messages
COMPLY STANDARD	IEC-62287 IEC 62287-2 Ed. 2.0:2017
AIS INTERFACE
DATA INPUT	NMEA 0183 , RS232
BAUD RATE	38,400
ECHO SOUNDER CHARACTERISTICS
ECHO COLOR	8 colors (including background color) according to echo intensity. The background color is selectable from blue, light blue, white and black.
BASIC RANGE	Meters 5/10/20/40/80/150/200/300/600/1000 Feet 15/30/60/120/200/400/600/1000/2000/3000 Fathoms 3/5/10/20/40/80/150/300/600 *The basic ranges can be changed on the system menu.
RANGE SHIFT	Up to 1000 meters (3000 feet,600 fathoms)
ZOOM RANGE	Times 2,3,4 and 6 ranges
BOTTOM LOCK EXPANSION RANGE	5/10 meters,10/20 feet,2/5 fathoms
AUTO MODE	Automatic adjustment of range and gain
DISPLAY MODE	High Frequency (200K),Low Frequency (50K), Dual (200K and 50K 1/2 display on each), Zoom (200K and 50K zoom) and A-scope Display
ZOOM DISPLAY	Marker Zoom, Bottom Zoom and Bottom-lock Expansion
DISPLAY ADVANCE SPEED	Lines/TX:Freeze,1/8,1/4,1/2,1/1,2/1
TX FREQUENCY	50 and 200kHz (alternately transmitted)
POWER OUTPUT	600W/ 1kW (Optional)

INTERFERENCE REJECTER	Rejects unwanted signals by comparing last and present echoes in strength.
ALARM	Fish and Bottom alarms, Temperature alarm (sensor required)
POWER SUPPLY
10.5 to 30VDC, current drain< 1.0 at 12V
PHYSICAL
SIZE	267.9mm(H)X363.8mm(W)X106mm(D)
WEIGHT	4.3kg
DISPLAY	12.1-inch Color TFT dayview LCD,800×600 pixels
WATERPROOFING	Display unit: IP66 Antenna unit: IP66
TEMPERATURE RANGE	Display unit: -15℃ to +55℃ Antenna unit: -25℃ to +70℃
EQUIPMENT LIST
STANDARD	Display unit Quick Manual Installation materials and standard spare parts GPS Antenna KA-07 (10m)
