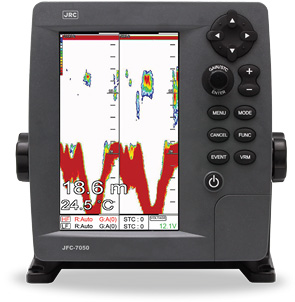

JRC JFC-7050 FF70 50/200 600W Echosounder

7-inch high brightness display

Simple operation

Dual frequency 50/200kHz

Fast processing

Multi display modes and alarms available

Features The JFC-7050 echo sounder/fish finder incorporates a high brightness 7-inch display and simple operation, allowing for flexibility and highly accurate and reliable read-out functionality

Dual frequency The JFC-7050 displays echoes on both 50 and 200kHz frequency. Generally the lower frequency is more suitable for bottom discrimination, while the high frequency is more useful for shallow water detection. This enables you to see the differences on both frequencies more clearly, giving you better potential for a more profitable catch.

Display JRC’s new echo sounder/fish finder incorporates a 7-inch high definition color LCD display. The preferred display mode can be easily selected and operation is made simple through the use of popup menus similar to those found on personal computers.

Bottom zoom/lock The bottom zoom and lock display mode provides a split display with a magnified image of the sea bottom, while maintaining a normal sea bottom view as reference.

A-scope By selecting the A-scope presentation mode, you will receive a detailed and real time representation of fish and bottom features passing through the beam of the transducer.

Alarms The JFC-7050 incorporates a variety of alarms for fish finding, water and navigation data alarms, contributing to safer navigation and more efficient fish finding.

Automatic functions Automatic gain, STC and range settings permit the bottom echo to be displayed on the screen at all times, ensuring easy operation - even for the novice user.

Flexible interfacing The transducer is the heart of the operation, measuring depth and temperature information, by sending ultrasonic signals which determine seabed conditions and the presence of life underwater. With separate NMEA0183 input and output on the display, it enables you to view speed and position, simply by connecting a GPS. GPS supports SBAS, DGPS, GLONASS. Transducer The B45 is the smallest, bronze, thru hull transducer available from Airmar, offering quality design at an economical price. The housing is streamlined to deflect aerated water, providing solid echo returns. Saving data Saving user data, such as waypoints, marks and tracks is easy, and can be done in two ways. Either record directly from the current screen or make individual screen captures. The data is stored on an external SD card.

Display 7-inch color LCD (800 by 480 pixels), LED backlight Brightness 500cd/m2 (ratio 16:9) Power 12-36V DC Consumption 18W Frequency 50/200kHz Display modes Normal, Bottom lock, Bottom zoom, A-scope Output power 600W RMS Depth range 2.5-1200m Shift range 0-1200m Auto mode Auto range, Auto gain, Auto STC Bottom zoom range 2.5/5/10/20m Manual gain 50 levels Rejection 4 levels STC 20 levels Pulse width 3 levels (low, middle, high) Transmitting power 4 levels Background color 5 colors Display color 16 colors Color rejection 14 levels Interface rejection 3 levels Alarm Depth, water temperature, fish school (depth, range) Data in/out NMEA0183, version 1.5-2.0 Data display Standard: depth, temp, speed (SOG) NMEA: time/date, LAT/LON, bearing (COG), NAV information Backup SD card and mini-USB Waypoint/mark 20.000 waypoints, 20.000 marks Simulator Built-in Unit Depth: m, ft, fm / Temperature: °C, °F / Speed: nm/kt, km/h, mph Ambient conditions Operating temperature: -15° to 50°C Storage temperature: -20° to 50°C IP protection rating: IP55 Relative humidity: 0% to 90% non-condensing
