· Passed China Classification Society CCS type approval.
· Support BDS, GPS dual-mode high-precision positioning.
· Built-in Class A AIS module with perfect AIS function.

Class A automatic identification system is composed of host and the display unit. The host adopts pure aluminum shell design that is corrosion-resistant and durable. It built-in Class A AIS module and has perfect AIS function. It has abundant interface that support to connect external electronic chart system, radar, GNSS chart plotter, etc.
◆ Passed the China Classification Society CCS type approval.

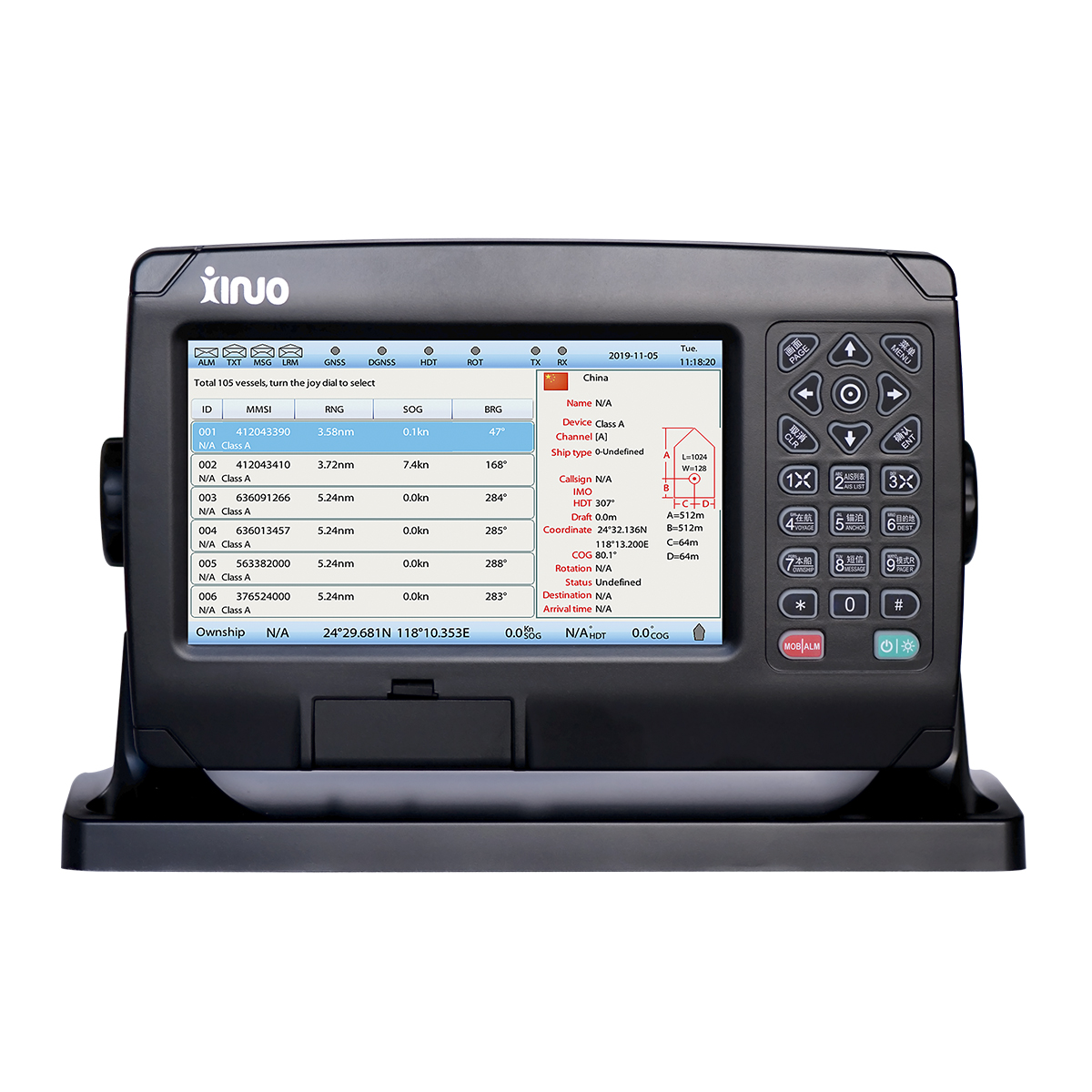

◆ 7-inch display unit and host, supports countertop and embedded installation.
◆ Supports BDS, GPS dual mode high precision positioning.
◆ Install in perfect AIS function, according to the ship navigation state intelligent switch transmission power.
◆ The AIS radar page intuitively shows the distribution of ships, and provides many types statistical data to reference.
◆ Record historical destination information for quickly select.
◆ Intelligent CPA alarm calculation mechanism can avoid outdated and ineffective alarms.
◆ Support to making ships being in a group to manage, and can set multiple alarm, such as anchor alarm, leave out alarm, etc.
◆ Install in intelligent voice to broadcast operation content, alarm content, etc.

Transponder Unit XA-198Frequency  156.025MHz ~ 162.025MHzBandwidth 25kHzModulation  GMSK / FMData Rate9,600 bpsNumber of AIS transmitter1Number of AIS Receiver 2（Contains A and B channels）Number of DSC Receiver1DSC Receiver CH70 (156.525 MHZ)Rx1(default)CH87B(161.975MHz)Rx2(default)CH88B(162.025MHz)Output Power 1W/12.5W

Display Unit
Display TypeColor TFT LCDSize

7 inch

Resolution

800 × 480 pixels (WVGA)

Brightness

500cd/㎡

LanguageEnglish, Simplified Chinese, Traditional  Chinese,  Vietnamese,  Turkish, Thai

Interface

Sensor1~3 Input: DTM,GNS,RMC,VBW,HDT,HDG,ROT,GBS,GLL,VTG

External Display/Pilot

Input. ABM,ABK,ACA,ACK,AIR,BBM,SSD,VSD,AIQ,LRF
Output. AIQ,ABK,ACA,SSD,VDM,VDO,VSD,TXT,ALR,LRI,LRF,AIQ

Long RangeInput. LRI,LRF            Output. LRF,LR1,LR2,LR3WIFI802.11 b/g/nPower Supply DC18V~36VPower Consumption18W or less （DC24V）

Enviromental
Storage Temperature-20℃~+60℃Working Temperature-15℃~+55℃Waterproof MKD, IP65. Transponder, IP22

GNSS
GNSS Receiver72 channels Receive FrequencyGPS L1: 1575.42MHz；BDS B1: 1561.098MHzAccuracyGPS&BDS2.5m(CEP50% open sky)GPS5m(CEP50% open sky)BDS5m(CEP50% open sky)Speed Accuracy0.1m/s(50%@10m/s)Time to First Fix Cold Start: <30s ，Hot Start: <1s

Standards

IMO Resolution A.694(17), IMO MSC 74.(69), IEC 61993-2, IEC 60945, IEC 61108-1, IEC61162-1, ITU-R M.1371-5
