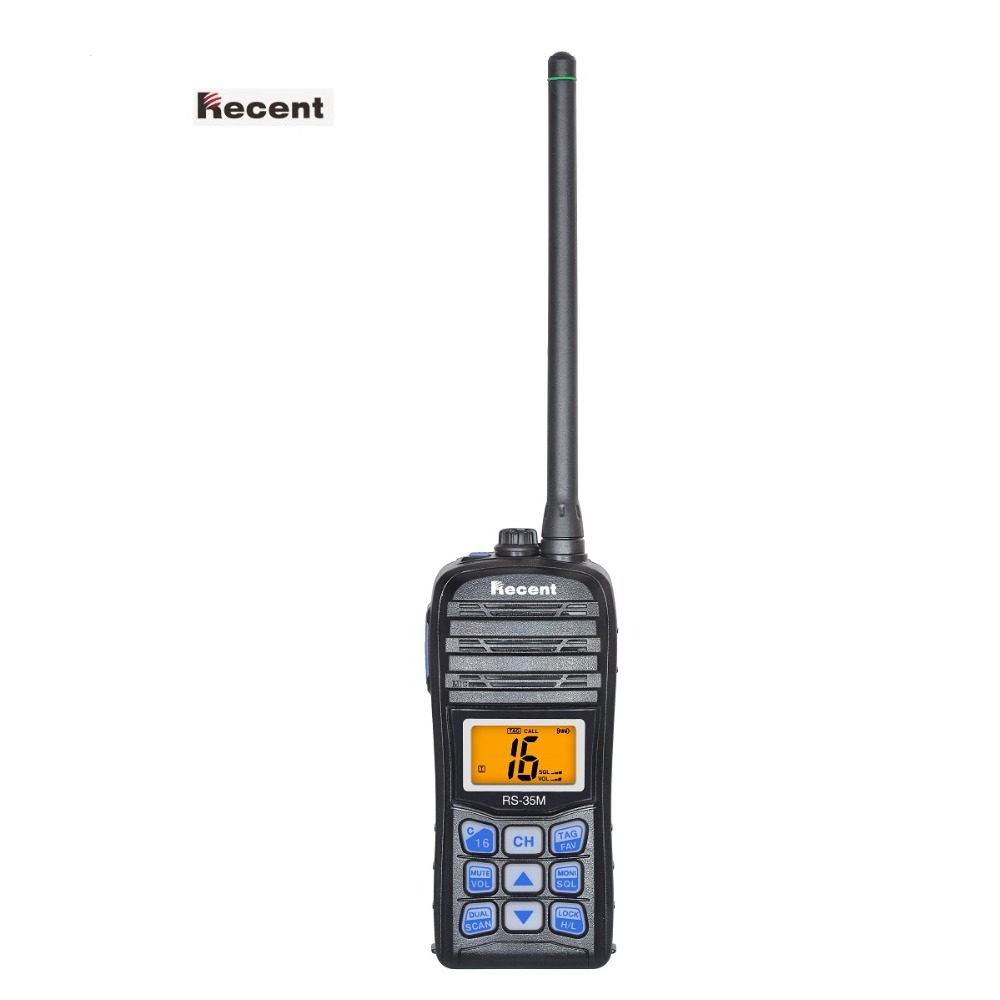

RS-35M

• IP-67 Waterproof and Dustproof
• 1 Meter Depth for 30 Minutes
• Float
• Vibration Draining
• Dual/Tri-watch
• 70 Porgrammable Channels
• Call Channel
• Battery Indicator
• Power Saver
• Auto Scan

Specification:

General

• Frequency Range:

              TX：156.000-161.450MHz

              RX：156.000-163.425MHz

• Output Power: 5W/1W
• Type of Emission: FM (16K0G3E)
• Battery Pack: 1200mAh Li-ion (DC 7.4V)
• Frequency Stability: ±2.5 PPM
• Operating Temperature: -20℃~ +60℃
• Antenna Impedance: 50Ω
• Dimensions (W × H × D): 63mm × 146mm × 42mm
• Weight: 280g (With Belt Clip and Antenna)

Transmitter

• Maximum Frequency deviation: ±5KHz
• Spurious Radiation: ≦0.25μw
• Adjacent Channel Power: >=70dB
• Audio Distortion: ≦10%
• Current consumption:
• ≦1.5A(High Power)
• ≦0.7A(Low Power)
• Audio Output: ≦0.2A(Max.)

Receiver

• Sensitivity: ≦0.22μV
• Squelch Sensitivity: ≦0.22μV
• SNR:≧40dB
• Adjacent Channel Selectivity: ≧70dB
• Spurious Response Immunity: ≧68dB
• Intermodulation Immunity:≧68dB
• Audio output power: ≧0.5W(10%)

Packing List:

1 x RS-35M Marine Radio Body
1X Antenna
1X lithium Battery Pack
1X Power Charger
1X Belt clip
1X Strap
1X User Manual
