NMEA 2000 NMEA 0183 Bidirectional Converter Çevirici

• NMEA2000 Certified
• Converts NMEA 0183 sentences to N2K PGNs
• Converts N2K PGNs to NMEA0183 sentences
• Take power from the N2K network, no external power supply is needed
• Configurable NMEA0183 baudrate
• Opto-isolated on N2K CAN bus
• Support RS232 and RS422 on NMEA0183 input/output
• Auto detect NMEA0183 baudrate and supported sentences
• Firmware upgrade and NMEA0183 output baudrate by webpage configuration
• Plug and play installation

Power supply (N2K Port)

Electrical: 9 ~ 30VDC
Current drain: 50mA at 12VDC
Protection: over-voltage, power transient and accidental reverse polarity protection

N2K Port (IEC61162-3)

Supported PGNs: 126992 , 127237, 127245, 127250 , 127251 , 127258 , 127488, , 128267, 128275, 129025 , 129026 , 129029 , 129033 , 129038, 129039, 129040, 129041, 129044 , 129283 , 129284 , 129291 , 129539 , 129540 , 129793 , 129794 , 129795, 129797, 129798 , 129801, 129802, 129809 , 129810, 129811, 129812, 130306 , 130310 , 130311 , 130312
Electrical: Opto-isolated on N2K Can bus
Speed/baudrate:
Connector: M12 male
Cable length: 1.2 meter
Factory default: All above supported PGNs are enabled

NMEA0183 Port(IEC61162-1)

Supported Sentences: AAM, AMB, APB, BBM, BWC, DBT, DPT, DSC, DSE, GGA, GLL, GSA, GST, GSV, HDG, HDM, HDT, HSC, MDA, MTW, MWD, MWV, RMB, RMC, ROT, RPM, RSA, VBW, VDM, VDO, VDR, VHW, VLW, VTG, VWR, XTE, XDR, ZDA
Electrical:
Output: RS422 & RS232
Input: RS422 & RS232
Baudrate:
Input: Auto detect (up to 115200)
Output: Configurable (factory default 38400)
Factory default: All above supported NMEA0183 are enabled

Environmental Conditions

Working temperature: -20°C to +55°C
Humidity: 93% ±3% on 40°C
Waterproofing: IPX67

 Equipment List

Standard

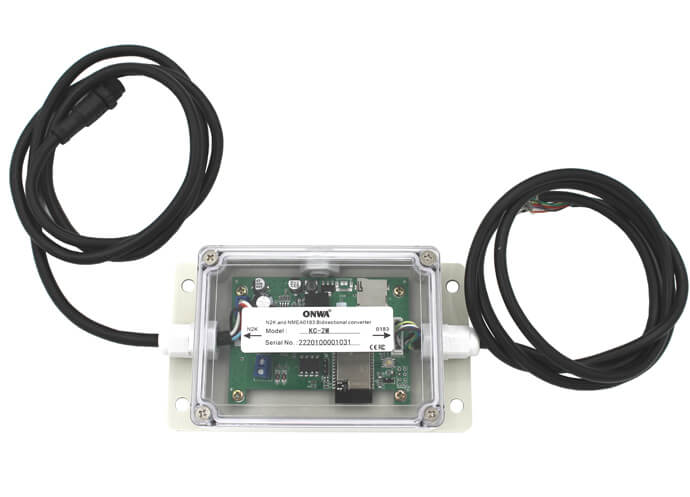

– KC-2W main unit (one end attached with 1.2 meters cable with M12 male 5 pins connector (N2K) and the other end 1.2 meters cable with open wires(NMEA0183))
– Mounting screws X 4 pcs
– Manual (quick installation manual)
