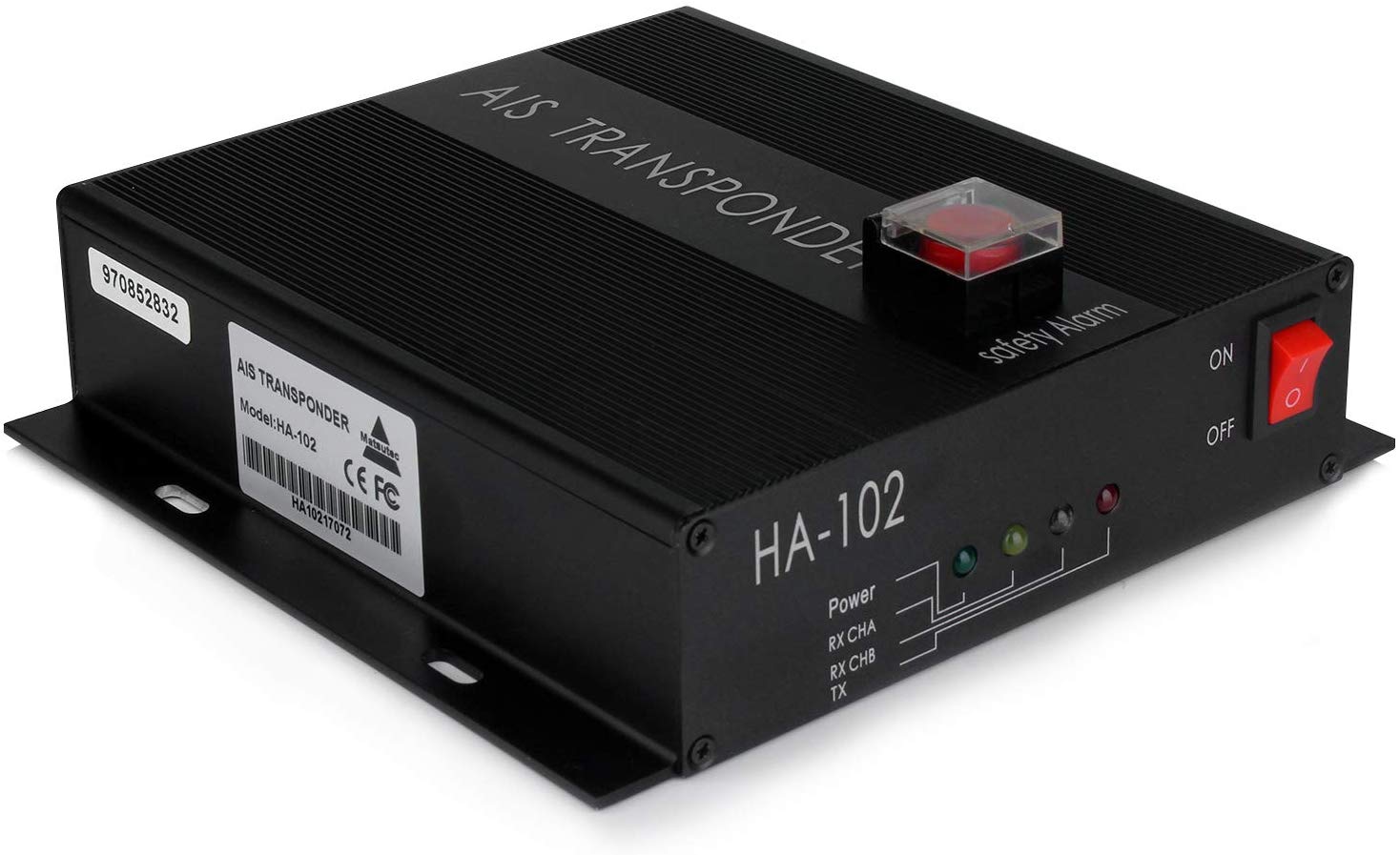

Matsutec HA-102 Marine Class B+ AIS Transponder

Sınıf B+ AIS Transponder tüm AIS verilerini iletir ve alır

RS232 Arayüzü NMEA0183

SOTDMA Teknolojisi - Sınıf A tarafından kullanılan aynı teknoloji

5W İletim Gücü

AIS Sart için SOS Düğmesi

Connectors :  VHF antenna connector PL259 Female

GPS antenna connector TNC Female

Power/ Data connector 5pin male

DB9  For RS232

PHYSICAL :  207mm X 156 mm X 50mm

Weight :     1.0 KG

Power :     10-35V DC / 2A peak

Electrical Interface :  RS232  38400 Baut Rate

Environmental :   -25 to 55 Degree

NMEA Sentence output :   VDM , VDO , RMC , GSV , GGA , GSA

AIS CHARACTERISTICS :

Frequency : 156.025- 162.025 MHZ

Access Scheme :  SOTDMA

Channel Bandwidth :  25KHZ

Modulation :  GMSK

Data Rate :   9600 bps

Number of AIS Transmitter :  1

Number of AIS Receiver : 2 ,  CH87B ( 161.97MHZ)  , CH88B ( 162.025MHZ)

Tx Power Output : > 5W  ( 37dBm +/- 1.5dB )

Rx Sensitivity :   <-123dBm  @20% PER)

RX Message Format : AIS Class A and B Messages

Comply Standard :  IEC-62287 , IEC 62287-2  Ed.2.0: 2017 .
